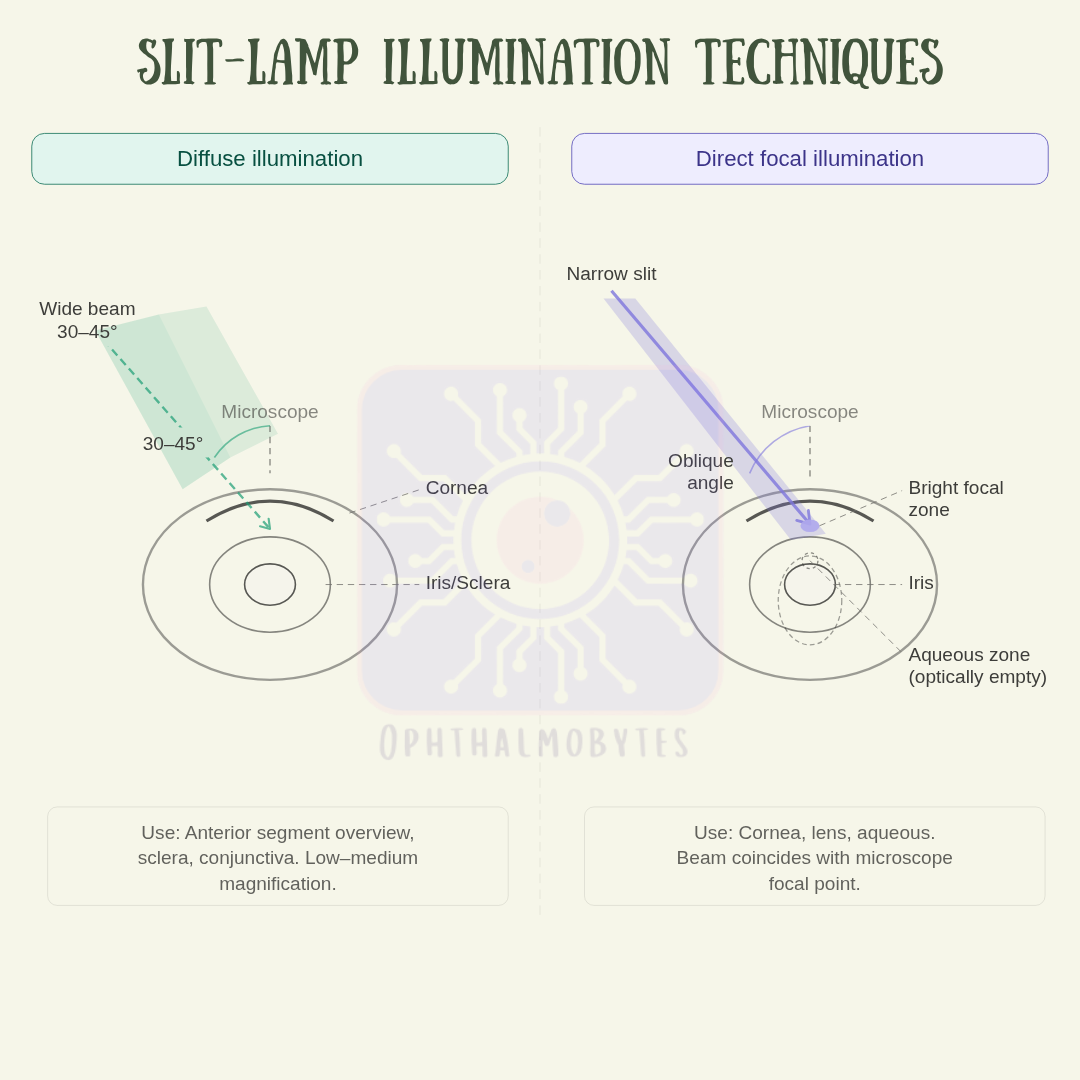

Slit-Lamp Illumination Techniques

1) Diffuse illumination

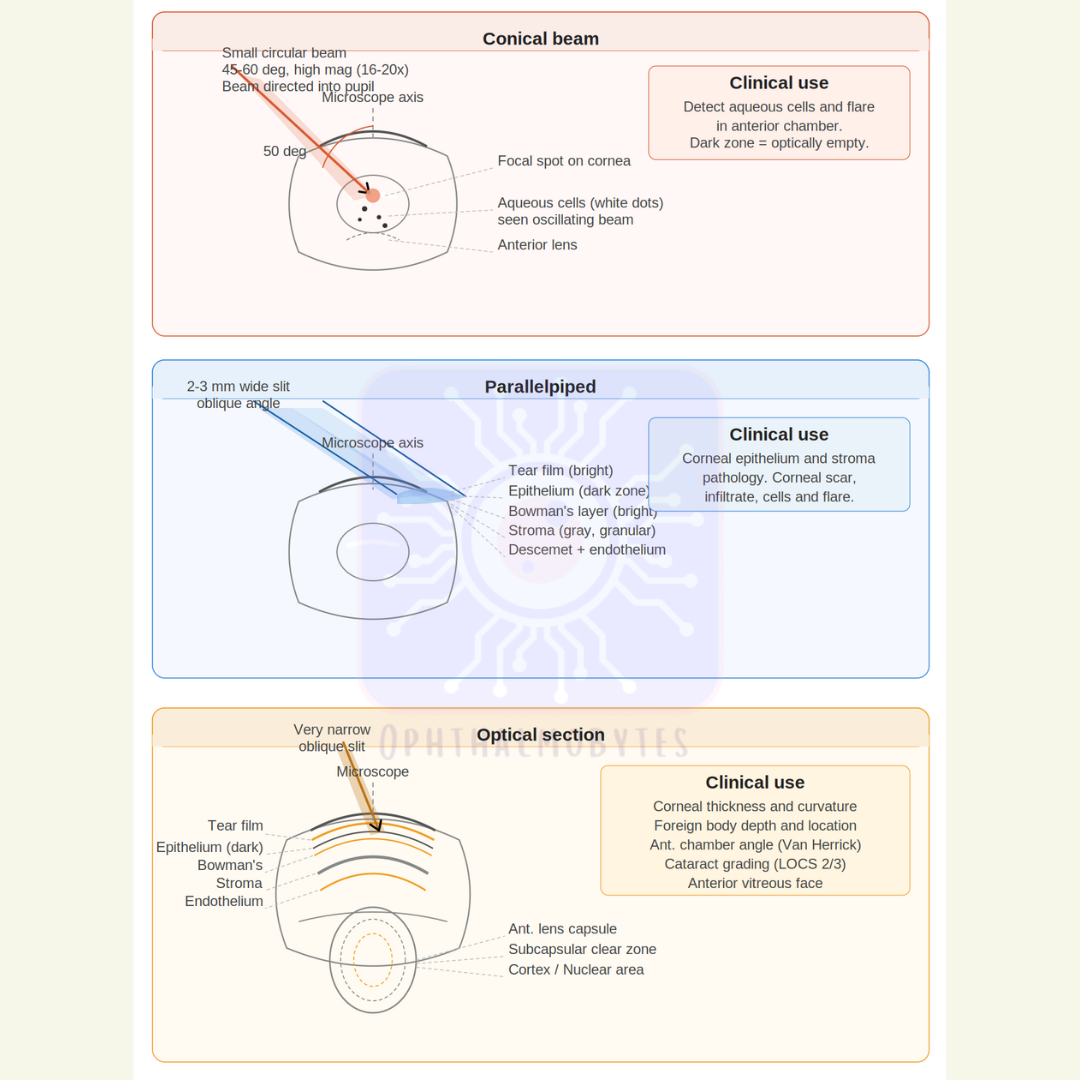

2) Direct focal illumination

- Conical beam

- Parallelopiped

- Optical section

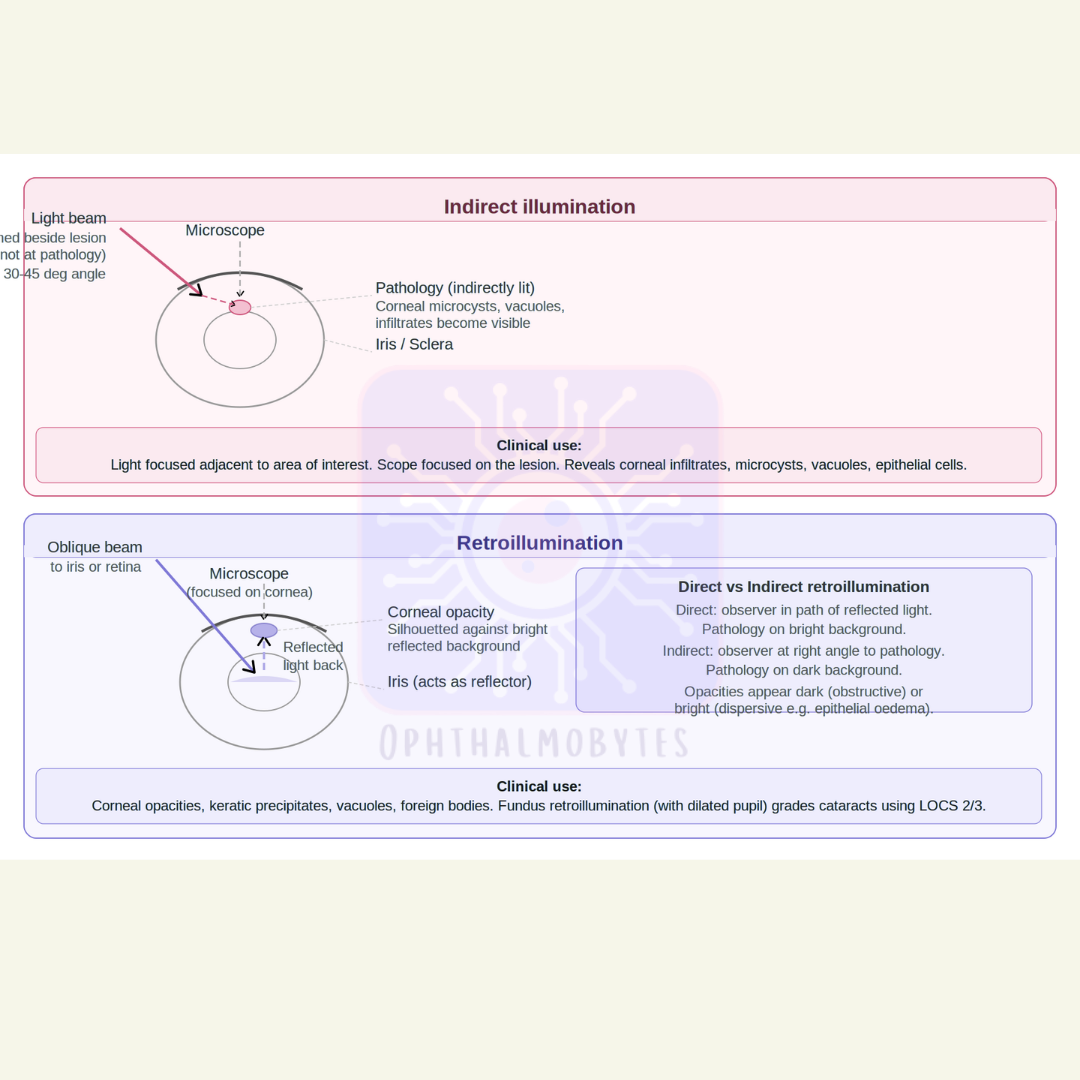

3) Indirect illumination

4) Retroillumination

- Direct

- Indirect

- Obstructive

- Respersive

- Refractile

- Fundus retroillumination

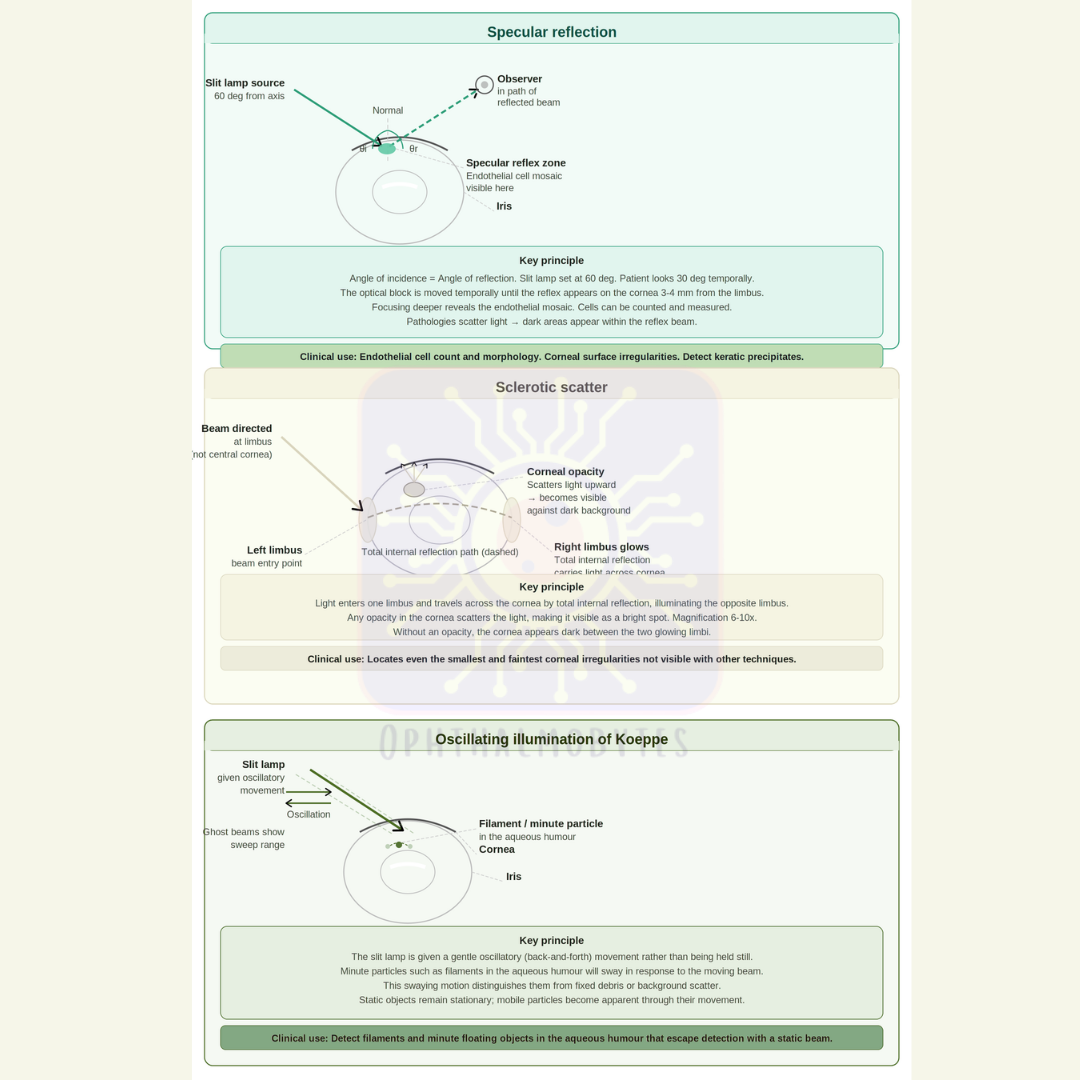

5) Specular reflection

6) Sclerotic Scatter

7) Oscillating Illumination of Koeppe
